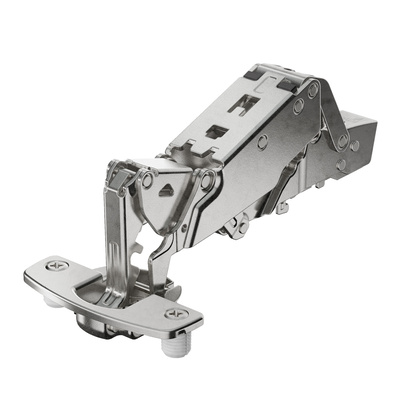

Sensys, the hinge technology with integrated Silent System for even more convenience when closing hinged doors. With its uniquely wide automatic closing angle, Sensys closes the door almost on its own. Innovative, smooth, gentle, quiet. Convenience boost in award winning design from Hettich.

• Sensys wide angle hinge, with zero protrusion
• With integrated Silent System, with self closing feature (Sensys 8657i)
• Quality classification under EN 15570, Level 3
• Opening angle 165°
• For door thickness 15-32 mm
• Door mounting option overlay (B 12.5 mm)

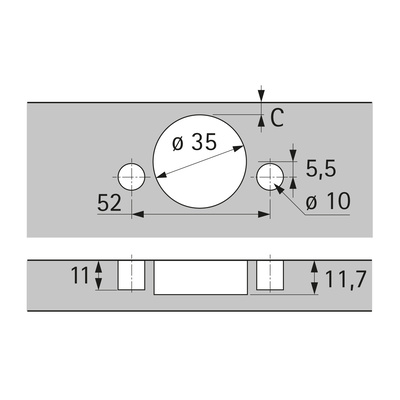

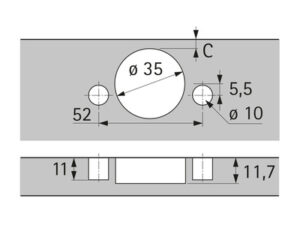

• TH – drilling pattern 52 x 5.5 mm
• Cup depth 11.6 mm
• Installation Flash fast assembly (TH 54)

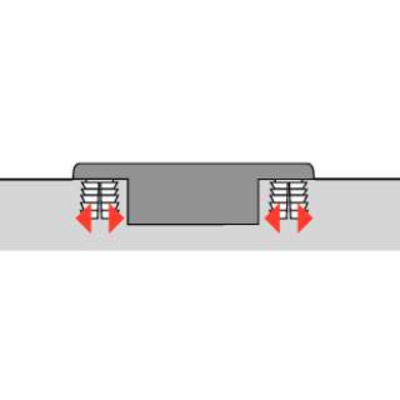

• Integrated overlay adjustment +2 mm / -2 mm
• Integrated depth adjustment +3 mm / -2 mm
• Height adjustment at mounting plate
• steel / die-cast zinc nickel plated
• BOX QTY: 50 PCS
• Price quoted per pc only
