| CODE | DESCRIPTION |
|---|---|
| 7.9088075.52 | Sensys angle hinge W90 with integrated silent system (Sensys 8639i W90), nickel plated, inset, Opening angle 95°, THS-drilling pattern 52 x 5.5 mm, Fix fast assembly (ø 10 x 6) |
All dimensions are in mm

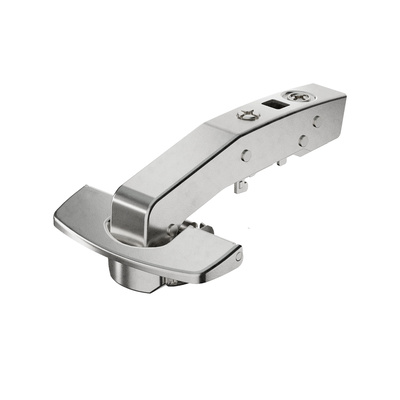

Sensys 95° Blind Corner Soft Close Hinge – FIX FAST ASSEMBLY
$18.95 (ex GST)
Sensys, the hinge technology with integrated Silent System for even more convenience when closing hinged doors. With its uniquely wide automatic closing angle, Sensys closes the door almost on its own. Innovative, smooth, gentle, quiet. Convenience boost in award winning design from Hettich.
- Sensys angle hinge W90
- With integrated Silent System, with self closing feature (Sensys 8639i W90)
- Quality classification under EN 15570, Level 3
- Opening angle 95°
- For door thickness 15 – 28 mm

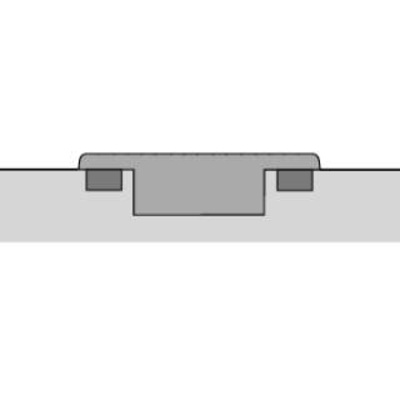

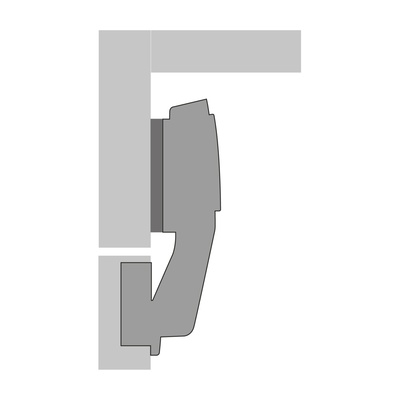

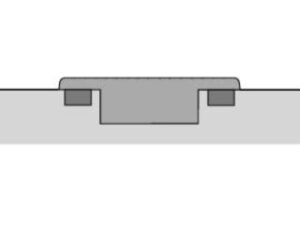

- Door mounting option inset (B 4 mm)

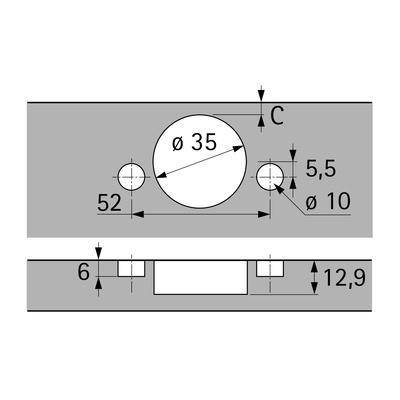

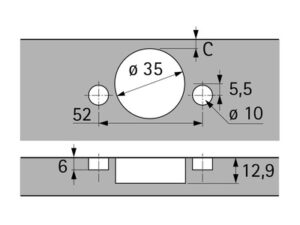

- THS-drilling pattern 52 x 5.5 mm
- Cup depth 12.8 mm
- Installation Fix fast assembly (THS 55)
- Integrated adjustment of door offset +1 mm / -2 mm
- Integrated reveal adjustment +3 mm / -2 mm
- Height adjustment at mounting plate
- steel nickel plated
- BOX QTY: 50 PCS
- Price quoted per pc only
