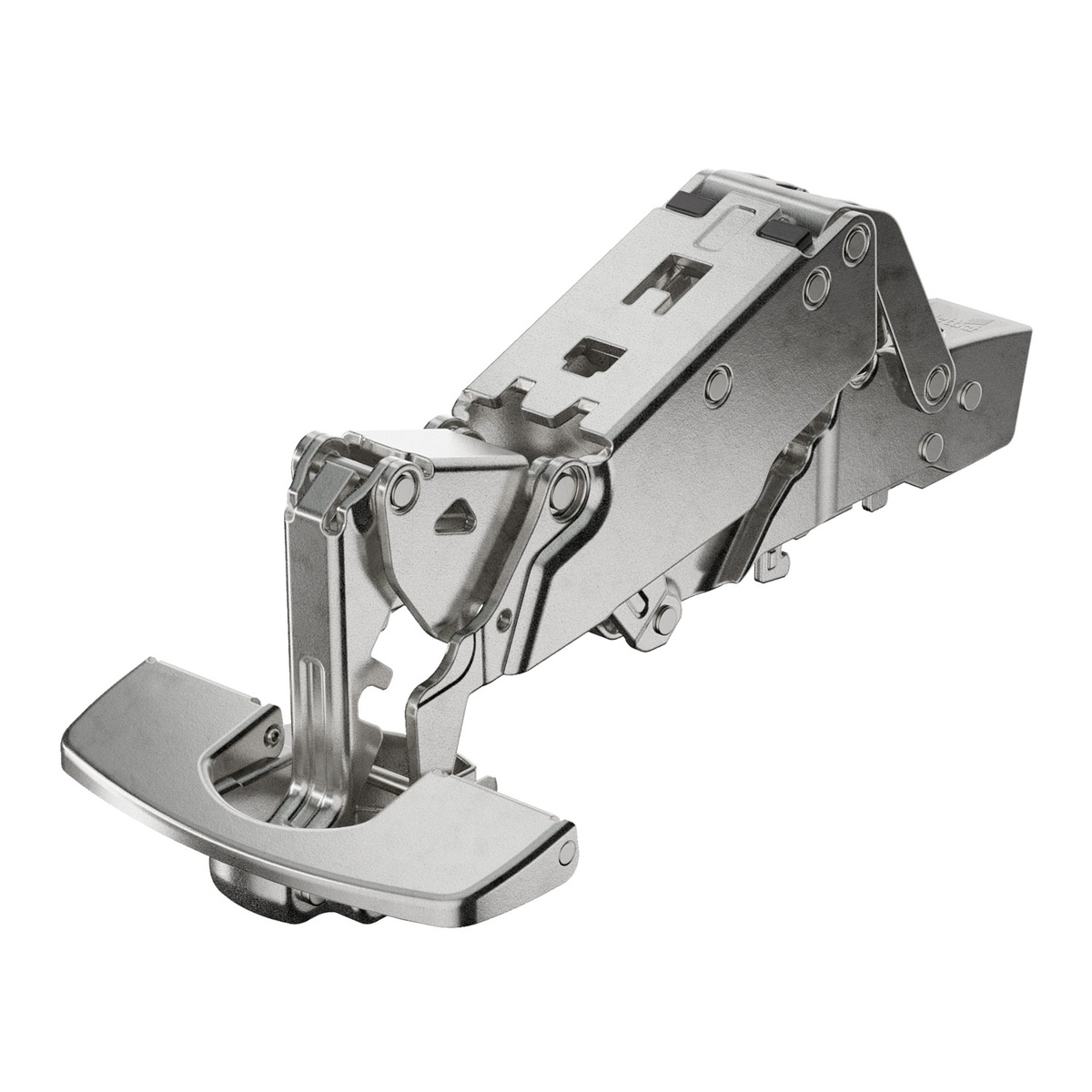

Sensys 165° Wide Angle Zero Protrusion Soft Close Hinge – Fix Fast Assembly

$18.95 (ex GST)

Sensys

Sensys, the hinge technology with integrated Silent System for even more convenience when closing hinged doors. With its uniquely wide automatic closing angle, Sensys closes the door almost on its own. Innovative, smooth, gentle, quiet. Convenience boost in award winning design from Hettich.

  • Sensys wide angle hinge, with zero protrusion
  • With integrated Silent System, with self closing feature (Sensys 8657i)
  • Quality classification under EN 15570, Level 3
  • Opening angle 165°
  • For door thickness 15-32 mm

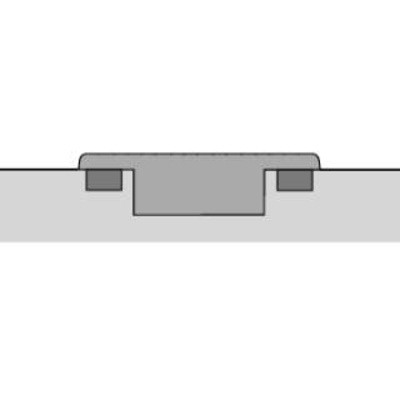

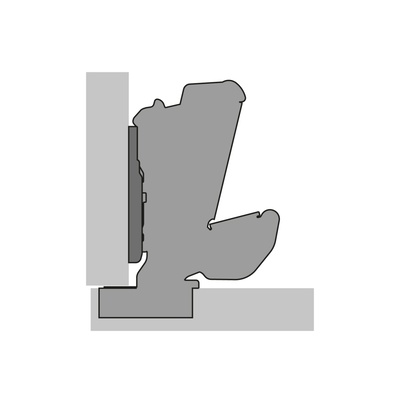

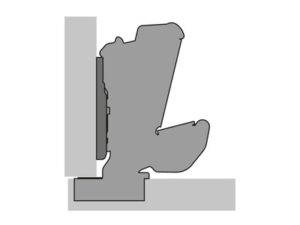

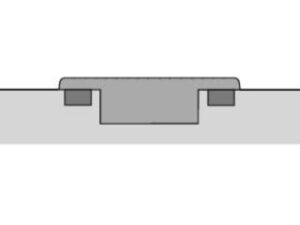

  • Door mounting option overlay (B 12.5 mm)

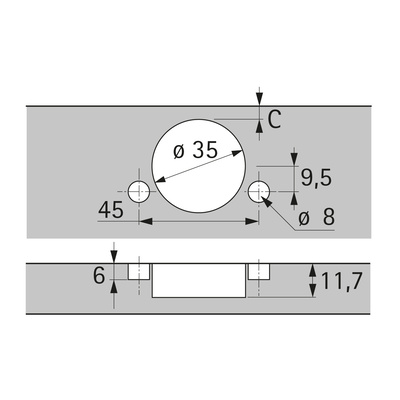

  • TB – drilling pattern 45 x 9.5 mm
  • Cup depth 11.6 mm
  • Installation Fix fast assembly (TB 55)
  • Integrated overlay adjustment +2 mm / -2 mm
  • Integrated depth adjustment +3 mm / -2 mm
  • Height adjustment at mounting plate
  • steel / die-cast zinc nickel plated

Hettich

SKU: 7.9099563.45 Category:



CODEDESCRIPTION
7.9099563.45Sensys wide angle hinge, with zero protrusion, with integrated silent system (Sensys 8657i), nickel plated, overlay, Opening angle 165°, TB-drilling pattern 45 x 9.5 mm, Fix fast assembly (ø 8 x 6)

All dimensions are in mm
