| CODE | DESCRIPTION |
|---|---|

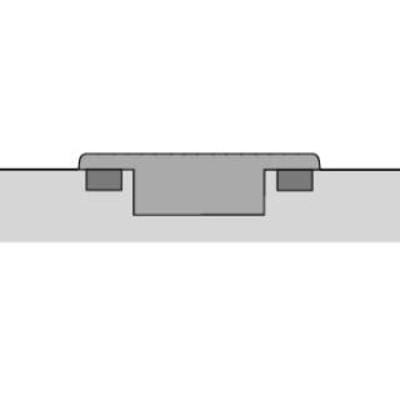

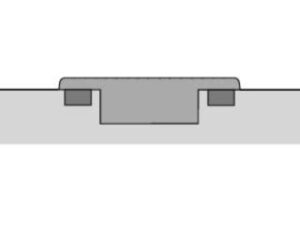

| 7.9073626.45 | Sensys 110° hinge with integrated silent system, nickel plated, overlay, Opening angle 110°, TB-drilling pattern 45 x 9.5 mm, Fix fast assembly (ø 8 x 6) |
All dimensions are in mm
Sensys 110° Soft Close Hinge Fix Fast Assembly
$8.55 (ex GST)
Sensys
Sensys, the hinge technology with integrated Silent System for even more convenience when closing hinged doors. With its uniquely wide automatic closing angle, Sensys closes the door almost on its own. Innovative, smooth, gentle, quiet. Convenience boost in award winning design from Hettich.
- Sensys 110° hinge
- With integrated Silent System, with self closing feature (Sensys 8645i)
- Quality classification under EN 15570, Level 3
- Opening angle 110 °
- For door thickness 15-24 mm

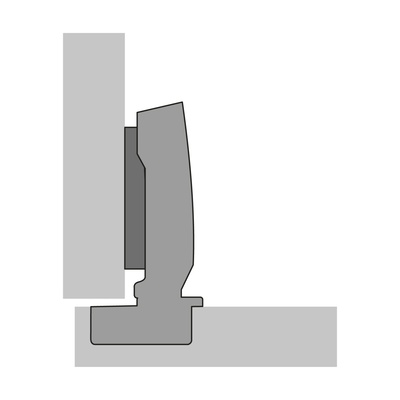

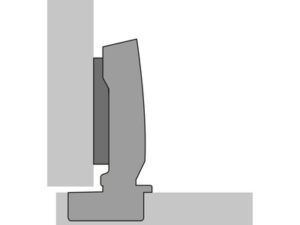

- Door mounting option overlay (B 12.5 mm)

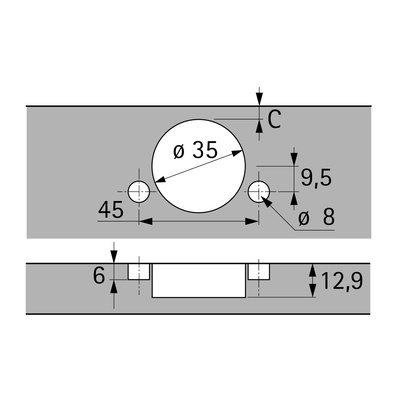

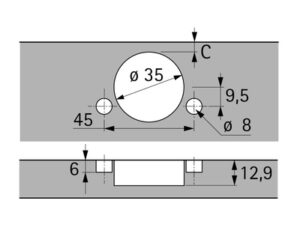

- TB – drilling pattern 45 x 9.5 mm
- Cup depth 12.8 mm

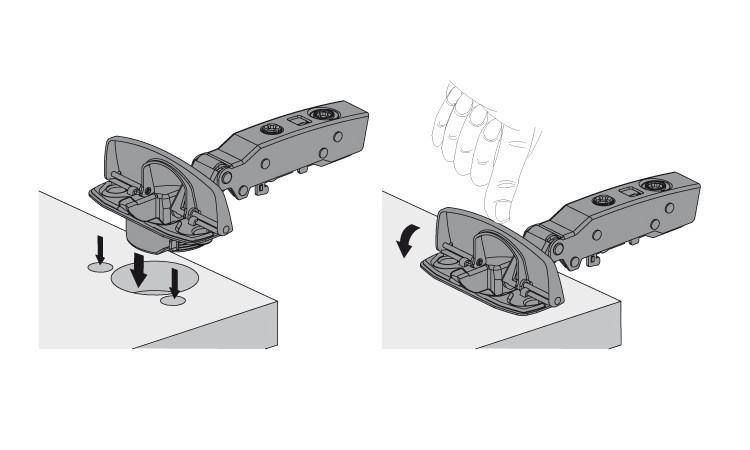

- Installation Fix fast assembly (TB 55)
- Integrated overlay adjustment +2 mm / -2 mm
- Integrated depth adjustment +3 mm / -2 mm
- Height adjustment at mounting plate
- steel nickel plated
