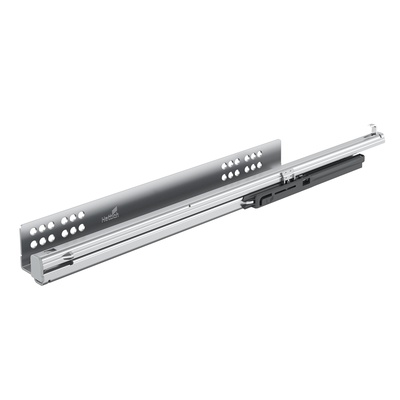

Hettich Quadro V6 Undermount Runner
9118058
Illu_Quadro_1_200_2-sw_shop
instruction
Hettich Quadro V6 Undermount Runner
9118058
Illu_Quadro_1_200_2-sw_shop
instruction

Hettich Quadro V6 with Silent System

$35.00 – $49.50 (ex GST)

Quadro V6 drawer runner

Precision as a matter of principle: thanks to its ball bearing principle, a Quadro runner guarantees lasting top performance and the last word in convenience for drawers. Elegantly concealed underneath the drawer bottom panel.

Load Capacity – 30 Kgs

Features:

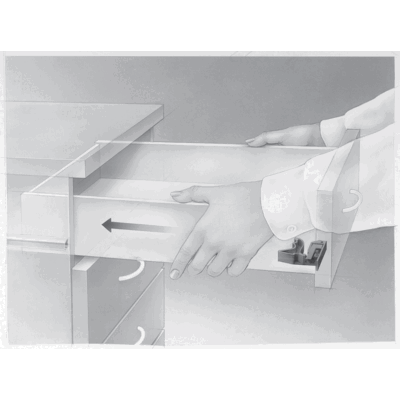

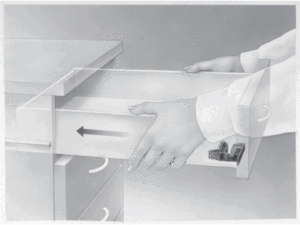

  1. Slide on installation with catches and tool-less height adjustment
  2. Integrated Silent System
  3. Optional: catch and plug for pull-out shelves
  4. Optional: Pull-out shelf locating catch
  5. Suitable for drawers with a side profile thickness of up to 16 mm
  6. Platform concept: identical cabinet body, drawer and front panel dimension for Quadro partial and full extension runners for slide on installation
  7. Load capacity to EN 15338, Level 3
  8. Galvanised steel
  9. Sizes available from 300mm-600mm

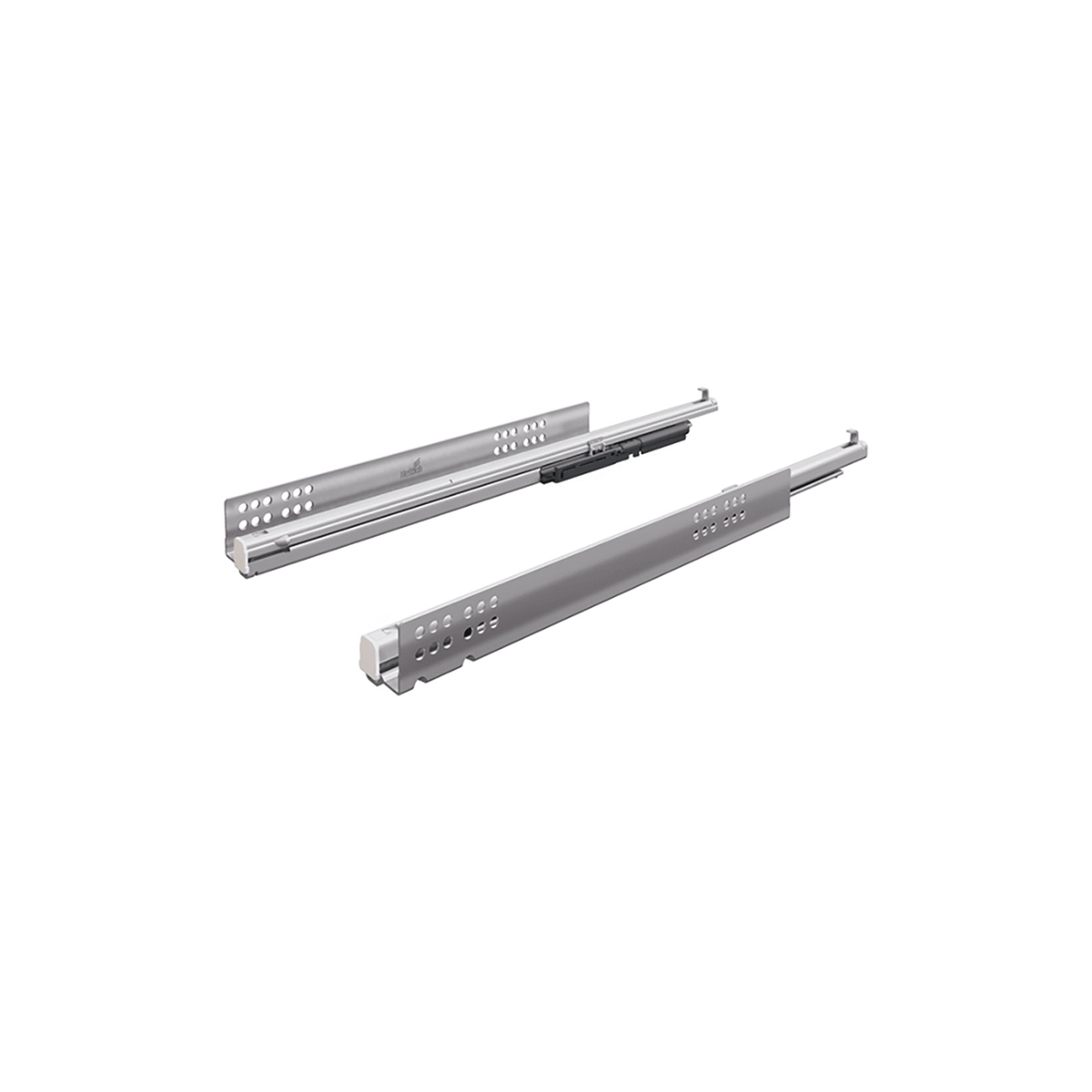

  10. Price includes LH & RH Slides + L&R ClipsAdvice:
    • Using catches/plugs for pull-out shelves reduces the length of the pull-out shelf by 12 mm (nominal length NL – 12 mm)
Clear
SKU: N/A Category:



CODEDESCRIPTION
13.9118030Hettich Quadro V6 Drawer Slide LR + clips – 300mm
13.9113013Hettich Quadro V6 Drawer Slide LR + clips – 350mm
13.9099108Hettich Quadro V6 Drawer Slide LR + clips – 400mm
13.9099124Hettich Quadro V6 Drawer Slide LR + clips – 450mm
13.9118058Hettich Quadro V6 Drawer Slide LR + clips – 500mm
13.9118043Hettich Quadro V6 Drawer Slide LR + clips – 550mm
13.9118028Hettich Quadro V6 Drawer Slide LR + clips – 600mm

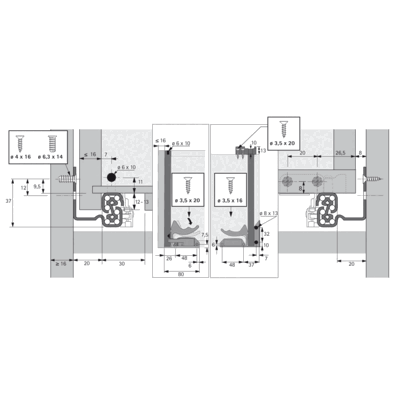

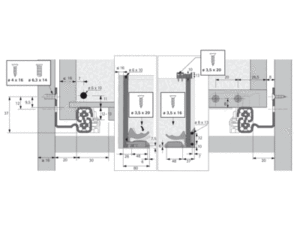

Quadro V6 Instruction Sheet

Hettich Quadro V6 Instruction Sheet
