| CODE | DESCRIPTION |
|---|---|
| 7.9071657 | Cross mounting plate with Direct height adjustment, nickel plated, Hole line 37 x 32 mm, with expanding sockets (for drilling ø 5 x 12 mm), distance 3.0 mm |
All dimensions are in mm

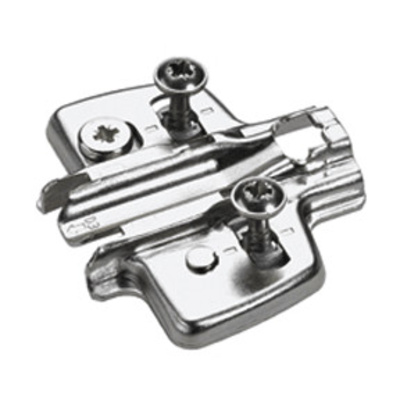

Hinge Plate with Height Adjustment, Expanding Sockets, Distance 3.0mm
$2.45 (ex GST)
- Cross mounting plate with Direct height adjustment
- For Sensys, Novisys and Intermat
- Quality classification under EN 15570, Level 3
- For Hole line 37 x 32 mm
- Installation with expanding sockets (for drilling ø 5 x 12 mm)
- Distance 3.0 mm
- Adjustment range + 2 mm / – 2 mm
- steel nickel plated
- BOX QTY: 200 PCS
- Price quoted per pc only
