Hinge plate suitable for reliable cabinet door hinge applications with strong fixing.
9071596-1
9071597-1

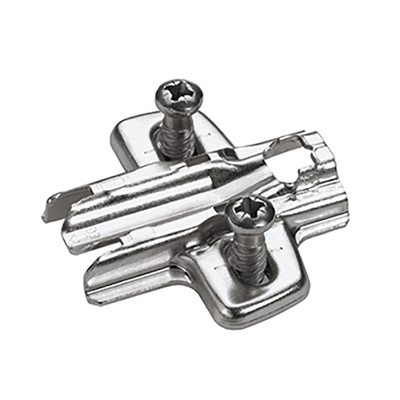

Hinge Plate with Euro Screws ø 5 x 12 mm, Distance 1.5mm

$1.20 (ex GST)

Hettich

  • Cross mounting plate with oblong hole height adjustment
  • For Sensys, Novisys and Intermat
  • Quality classification under EN 15570, Level 3
  • For Hole line 37 x 32 mm

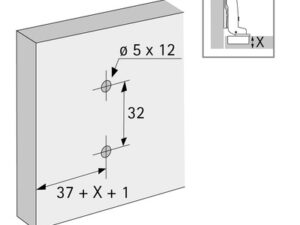

  • Installation with euro screws (for drilling ø 5 x 12 mm)
  • Distance 1.5 mm
  • Adjustment range + 3 mm / – 3 mm
  • steel nickel plated
  • BOX QTY: 200 PCS
  • Price quoted per pc only
SKU: 7.9071626 Category:



CODE DESCRIPTION
7.9071626 Cross mounting plate with oblong hole height adjustment, nickel plated, Hole line 37 x 32 mm, with euro screws (for drilling ø 5 x 12 mm), distance 1.5 mm

All dimensions are in mm

Hinge plate suitable for reliable cabinet door hinge applications with strong fixing.
