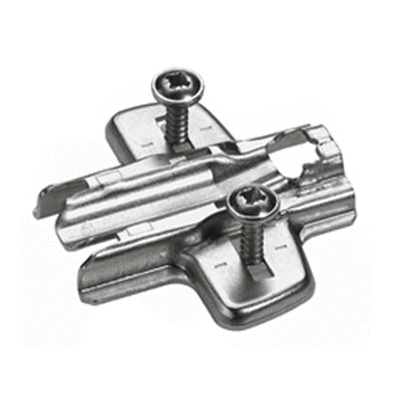

Hinge Plate with 5mm Expanding Sockets, Distance 3.0mm

$1.40 (ex GST)

Hettich

  • Cross mounting plate with oblong hole height adjustment
  • For Sensys, Novisys and Intermat
  • Quality classification under EN 15570, Level 3

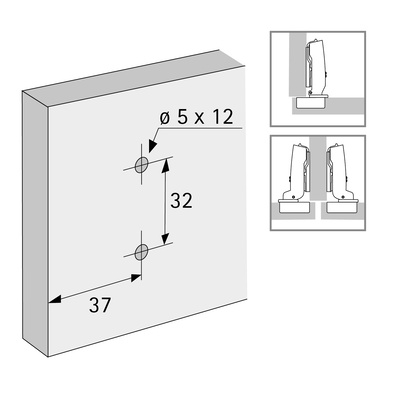

  • For Hole line 37 x 32 mm
  • Installation with expanding sockets (for drilling ø 5 x 12 mm)
  • Distance 3.0 mm
  • Adjustment range + 2 mm / – 2 mm
  • steel nickel plated
  • BOX QTY: 200 PCS
  • Price quoted per pc only
SKU: 7.9071597 Category:



CODEDESCRIPTION
7.9071597Cross mounting plate with oblong hole height adjustment, nickel plated, Hole line 37 x 32 mm, with expanding sockets (for drilling ø 5 x 12 mm), distance 3.0 mm

All dimensions are in mm
