| CODE | DESCRIPTION |
|---|---|
| 7.052095 | Hettich Centre Hinge with Adjustable Offset Pivot, For Pressing In |

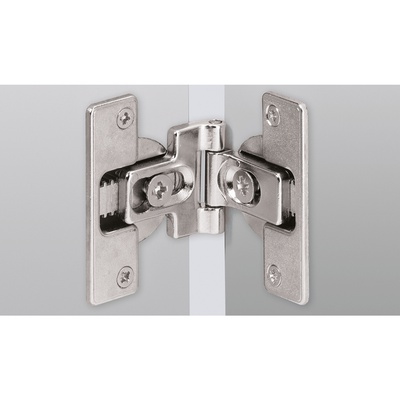

Hettich Centre Hinge with Adjustable Offset Pivot, For Pressing In
$17.95 (ex GST)
- Centre hinge for folding doors
- For door thicknesses from 15 mm

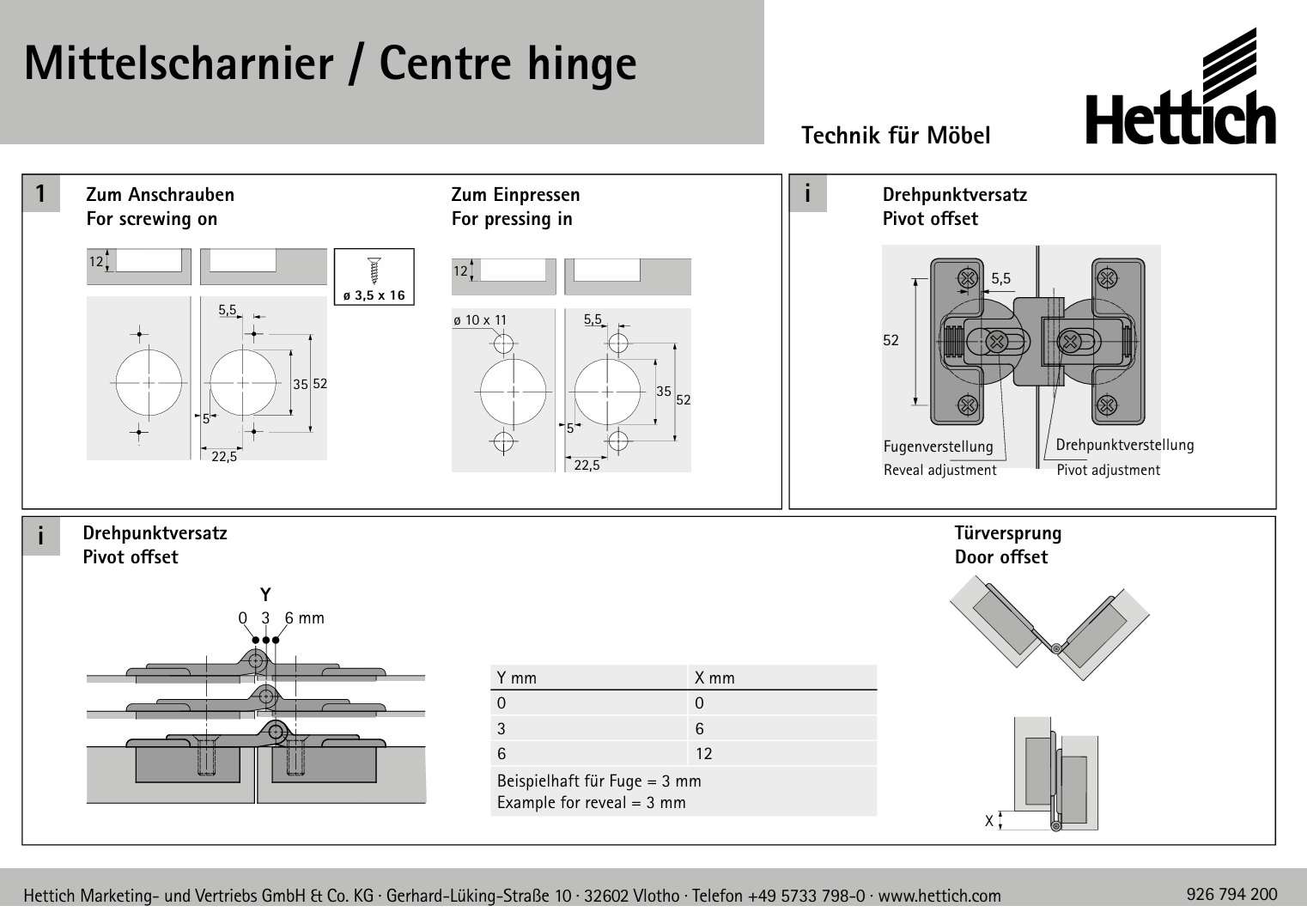

- Same drilling pattern for door and side element, both elements are mounted separately
- The reveal can be infinitely adjusted from minimum reveal to + 4 mm, application is always flush
- Gradual adjustment of the pivot offset with 0 mm, 3 mm and 6 mm
- Nickel plated die-cast zinc
| Opening angle° | 180 ° |
| Door mounting option | overlay |
| Cup diameter | 35 mm |
| Opening angle | 180 ° |
This item: Hettich Centre Hinge with Adjustable Offset Pivot, For Pressing In
$17.95 (ex GST)
$17.95 (ex GST)
