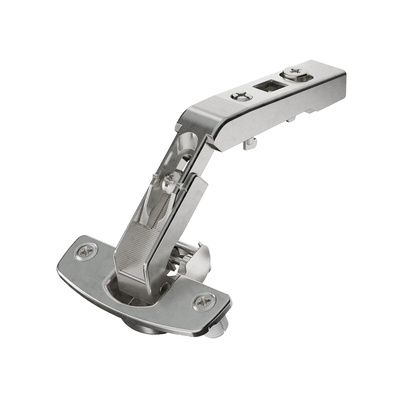

Hettich 50° / 65° Hinge For Corner Doors – FLASH FAST ASSEMBLY

$11.95 (ex GST)

Hettich

Sensys, the hinge technology with integrated Silent System for even more convenience when closing hinged doors. With its uniquely wide automatic closing angle, Sensys closes the door almost on its own. Innovative, smooth, gentle, quiet. Convenience boost in award winning design from Hettich.

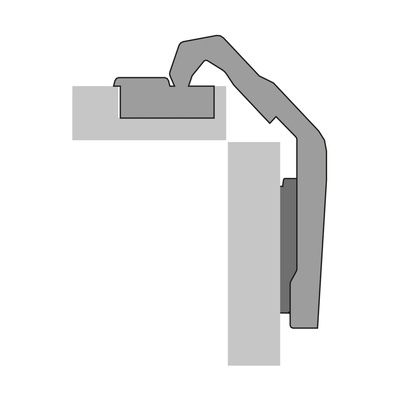

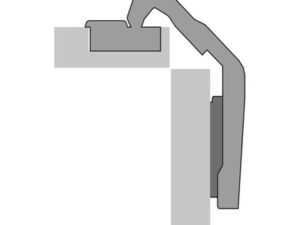

  • Hinge for corner cabinet folding doors
  • Without self closing feature (Intermat 9930)
  • Quality classification under EN 15570, Level 2
  • Opening angle 50° / 65°
  • For door thickness 15 – 21 mm
  • Door mounting option overlay

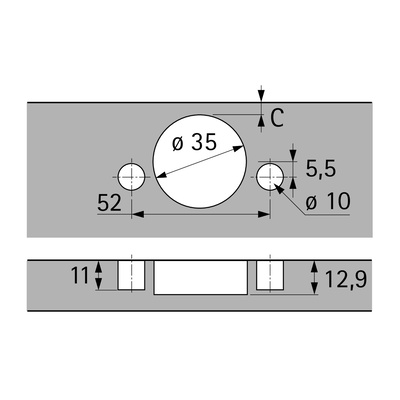

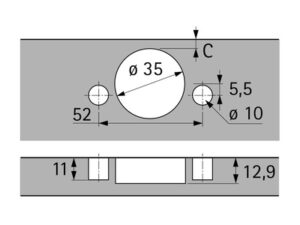

  • TH – drilling pattern 52 x 5.5 mm
  • Cup depth 12.8 mm
  • Installation Flash fast assembly
  • Integrated diagonal adjustment +9.5 mm / -9.5 mm
  • Integrated overlay adjustment, see sketch
  • Integrated depth adjustment, see sketch
  • Height adjustment at mounting plate
  • steel / die-cast zinc nickel plated
  • BOX QTY: 50 PCS
  • Price quoted per pc only
SKU: 7.9090111.52 Category:



CODEDESCRIPTION
7.9090111.52Hinge for corner cabinet folding doors without self closing feature (Intermat 9930), nickel plated, overlay, Opening angle 50° / 65°, TH-drilling pattern 52 x 5.5 mm, Flash fast assembly (ø 10 x 11)

All dimensions are in mm
