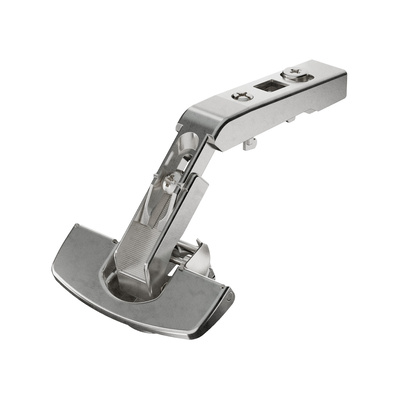

Hettich 50° / 65° Hinge for Corner Cabinet Folding Door – Fix Fast Assembly

$12.50 (ex GST)

  • Hinge for corner cabinet folding doors
  • Without self closing feature (Intermat 9930)
  • Quality classification under EN 15570, Level 2
  • Opening angle 50° / 65°
  • For door thickness 15 – 21 mm

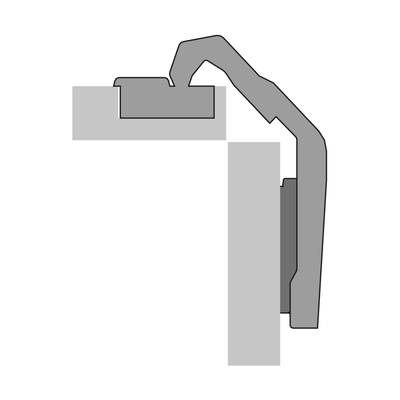

  • Door mounting option overlay

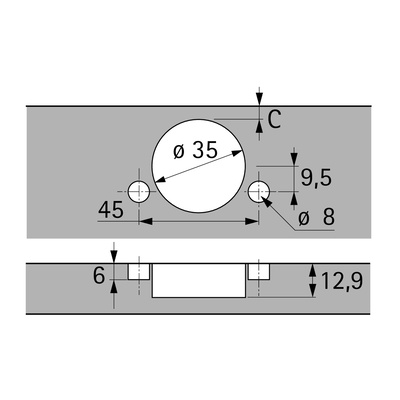

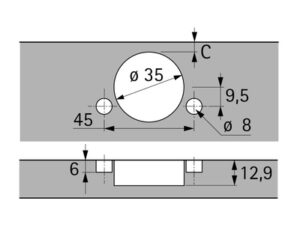

  • TB – drilling pattern 45 x 9.5 mm
  • Cup depth 12.8 mm
  • Installation Fix fast assembly
  • Integrated diagonal adjustment +9.5 mm / -9.5 mm
  • Integrated overlay adjustment, see sketch
  • Integrated depth adjustment, see sketch
  • Height adjustment at mounting plate
  • steel / die-cast zinc nickel plated

    Hettich

SKU: 7.9090119.45 Category:



CODEDESCRIPTION
7.9090119.45Hinge for corner cabinet folding doors without self closing feature (Intermat 9930), nickel plated, overlay, Opening angle 50° / 65°, TB-drilling pattern 45 x 9.5 mm, Fix fast assembly (ø 8 x 6)

All dimensions are in mm
