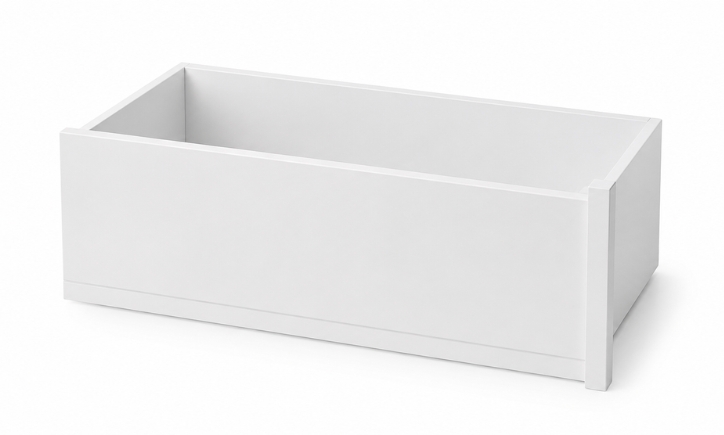

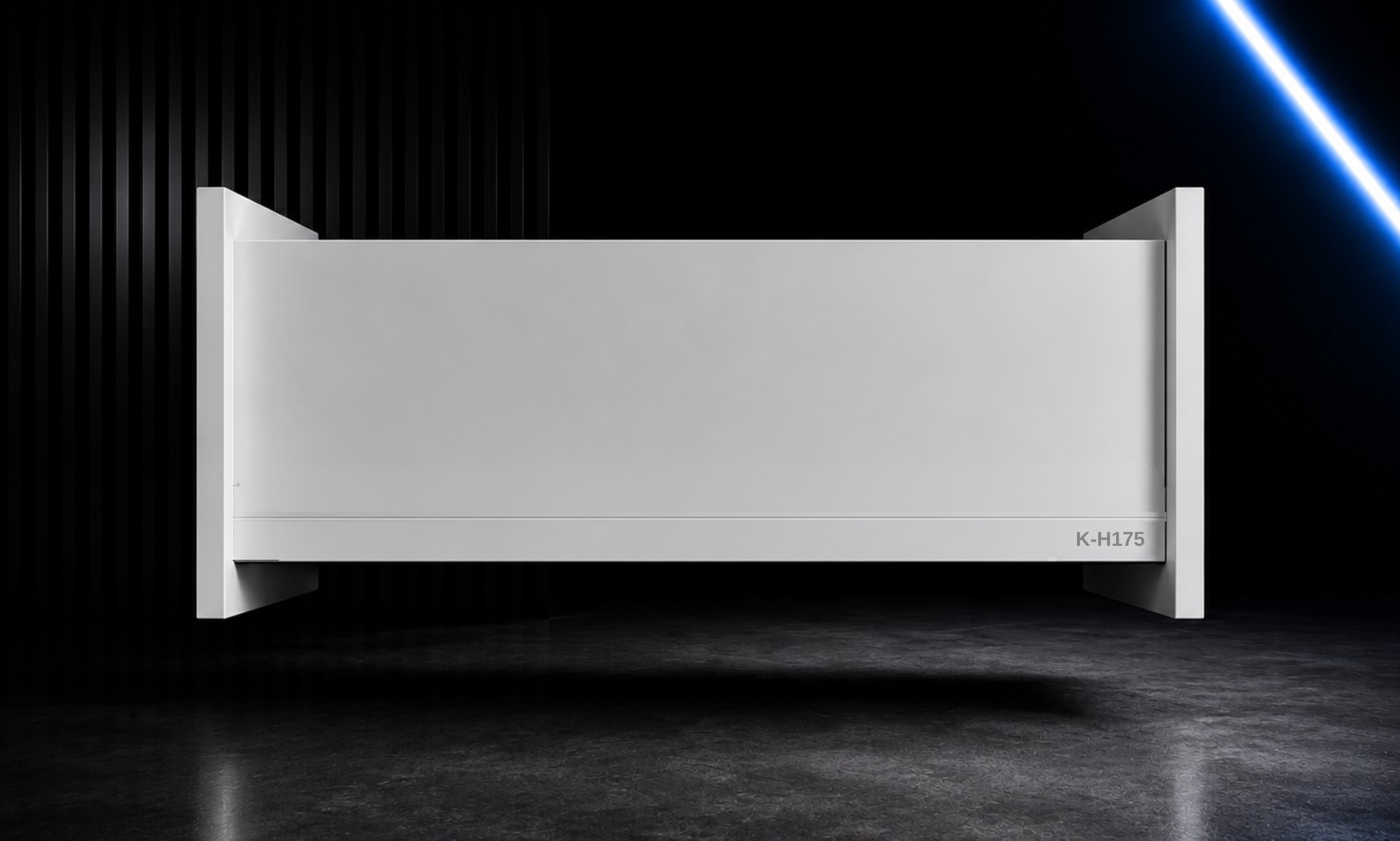

K H175

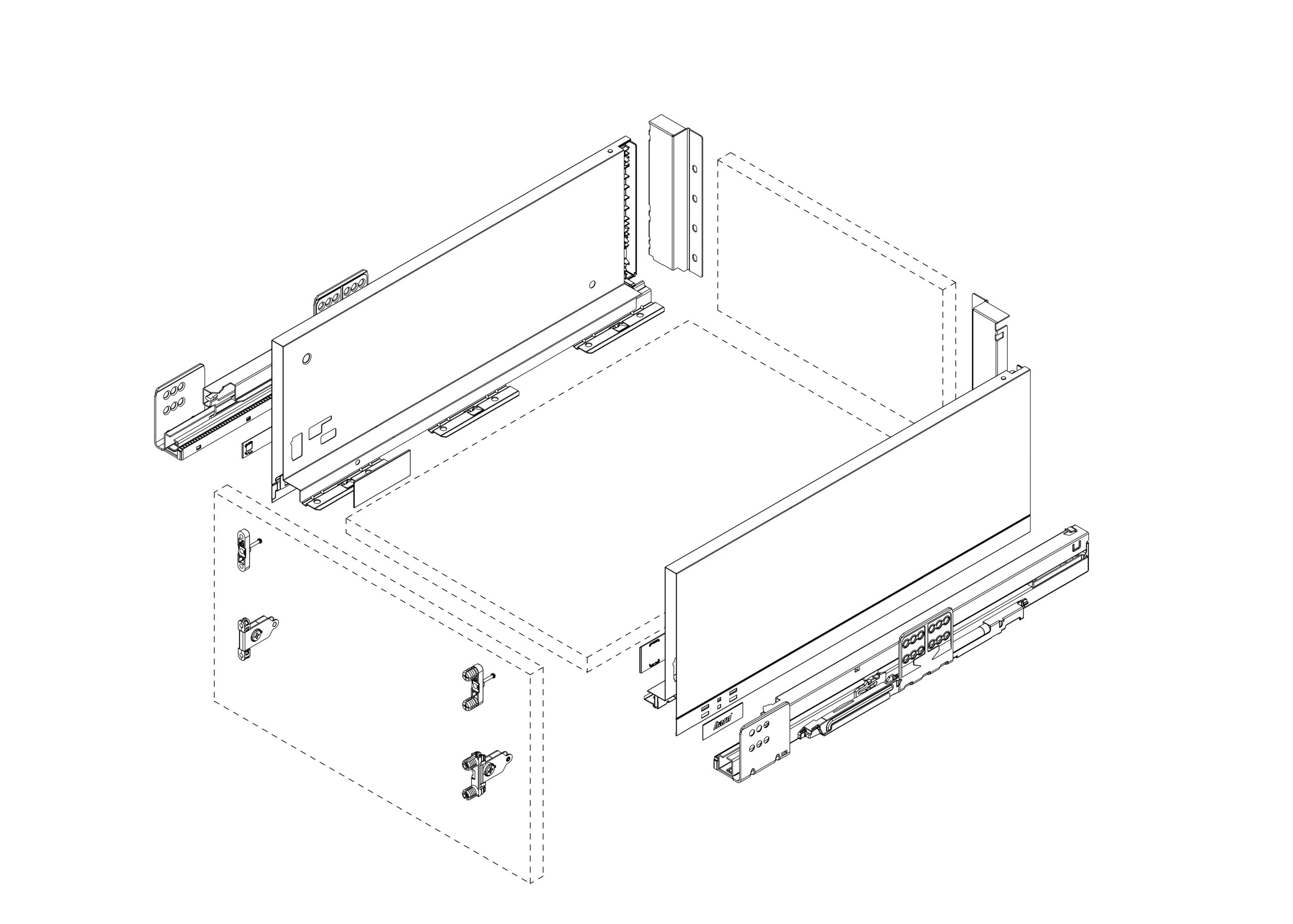

K-Standard Drawer
Front bracket

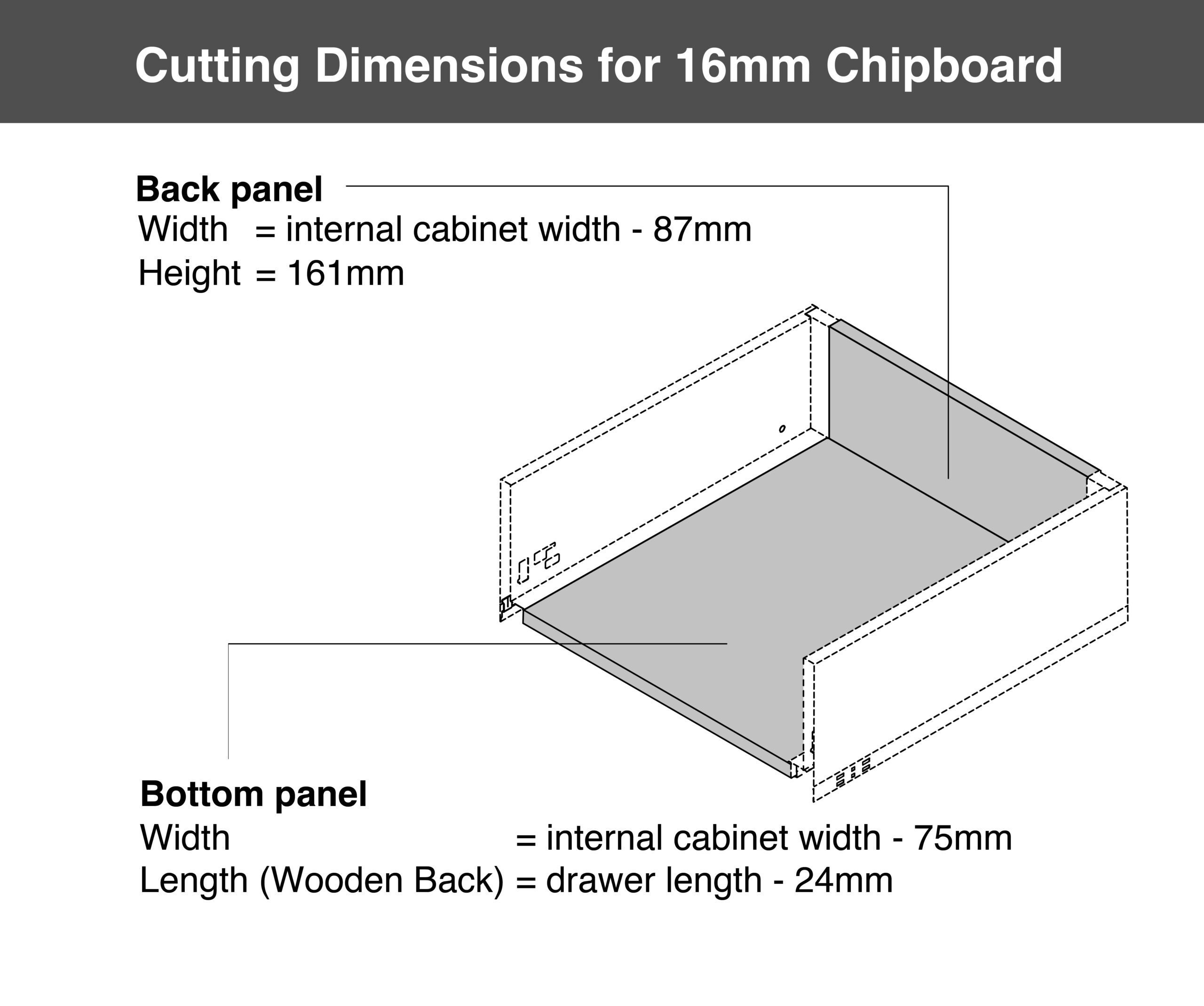

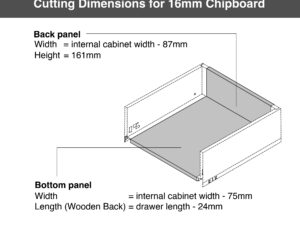

K_Cutting Dimensions for 16mm Chipboard

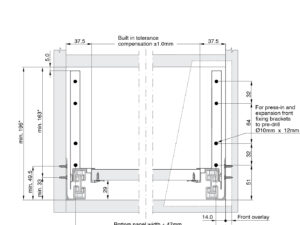

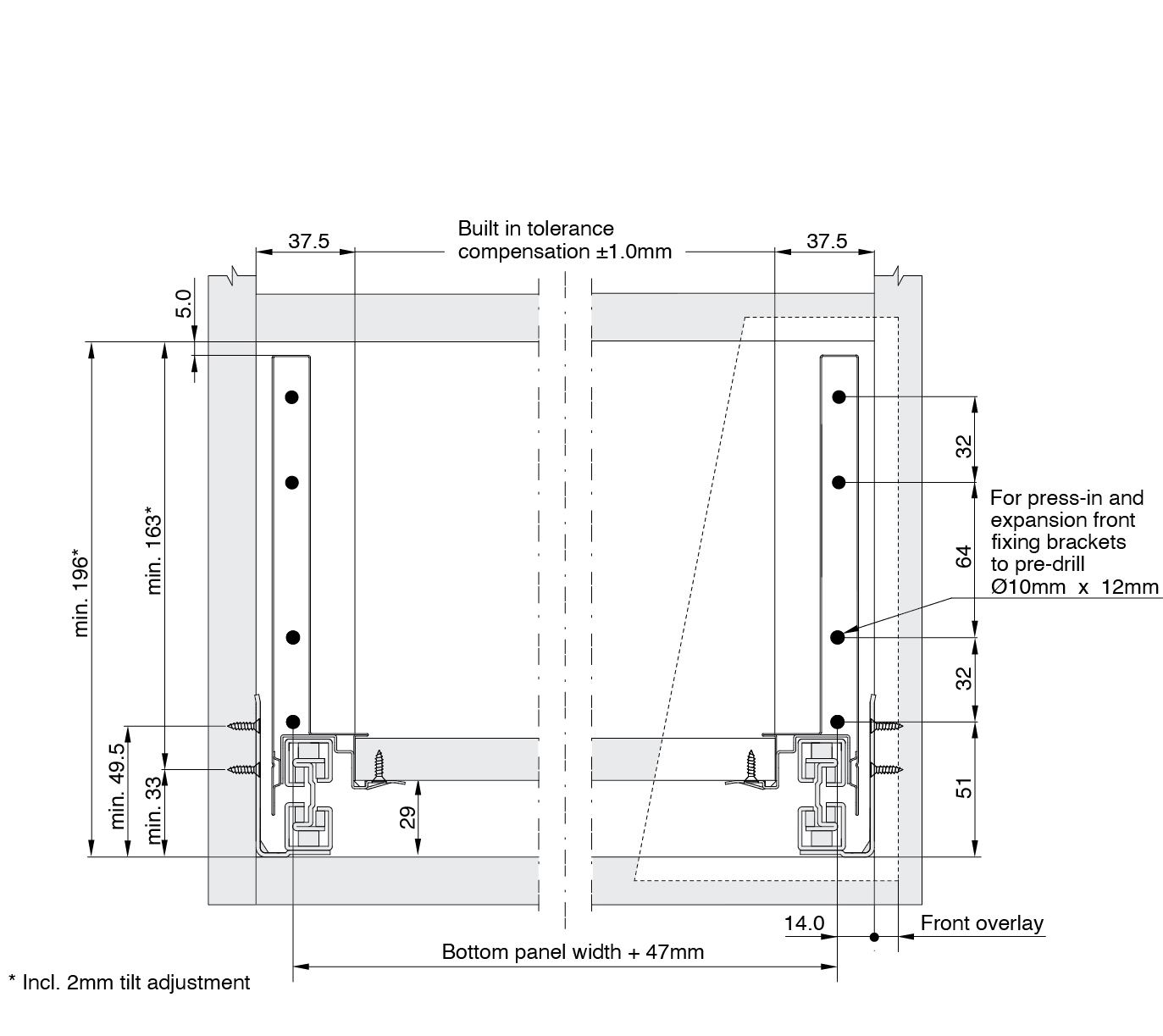

K_Space requirement

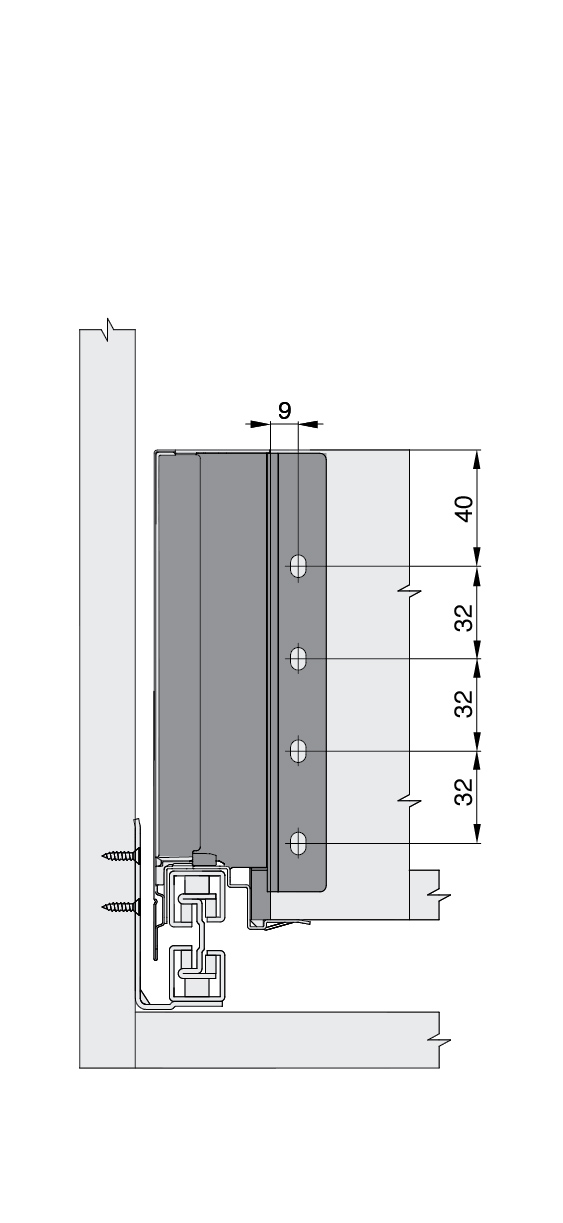

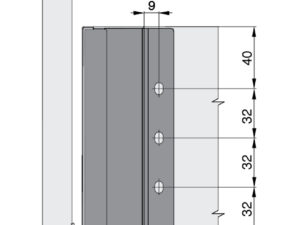

K_Back_Space requirement

Harn ALUNAN T Drawer K175

Price range: $57.00 through $77.00 (ex GST)

  • Roller Bearing concealed runners
  • Full extension with synchro control
  • Sylent integrated cushioning system
  • Steel drawer side K175mm
  • Color – Silk White
  • Quick assembly
  • Flexible 3D front adjustment for height, side & Tilt.
  • +/- 2mm up & down adjustment
  • +/- 1.5mm left & right adjustment
  • + 2.0mm / -1.0mm Tilt adjustment
  • Load capacity: 35Kgs or 60KGs

60,000 cycles tested – LGA certified

Clear
SKU: N/A Category:

One Package contains

1.       Left / Right drawer runners
2.       Left / Right 175mm high steel drawer sides
3.       Left / Right rear brackets
4.       Left / Right front fixing brackets folding type with the dowels
5.       Installation instructions





Instruction Sheet

Harn ALUNAN T (S,T & K Drawer) Instruction Sheet

Harn ALUNAN T (S,T & K Drawer) Instruction Sheet – Runner Profile
