FGV ASIA- MOUNTING PLATES FOR INTEGRA HINGES

$1.00 – $1.75
For discount price, please login here

Features:

FGV INTEGRA MOUNTING PLATES

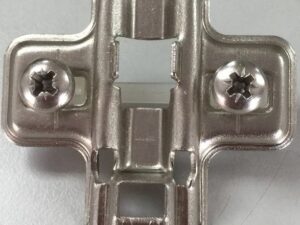

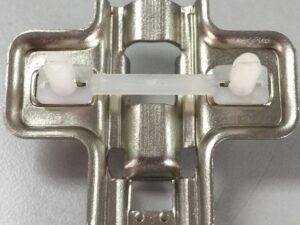

  • Standard Mounting plates H2 & H4 with knock-in fixing dowels Ø5mm

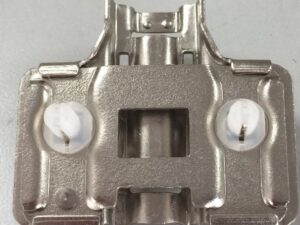

  • INTEGRA H2 & H4 Metal Cruciform Double Body CAM adjustment Mounting Plate with
    knock-in fixing dowels Ø5mm
Clear
Compare
Add to wishlist
SKU: N/A Category:
Description

Features:

FGV INTEGRA MOUNTING PLATES

  • Standard Mounting plates H2 & H4 with knock-in fixing dowels Ø5mm
  • INTEGRA H2 & H4 Metal Cruciform Double Body CAM adjustment Mounting Plate with
    knock-in fixing dowels Ø5mm

Features:

CODE DESCRIPTION DRILLING
7.525.INTH2 H2 Mounting Plate for Integra Hinge with knock-in fixing dowels 32
7.525.INTH4 H4 Mounting Plate for Integra Hinge with knock-in fixing dowels 32
7.D52.H2CAM H2 Double body plate with Cam Fixing and knock-in fixing dowels 32
7.D52.H4CAM H4 Double body plate with Cam Fixing and knock-in fixing dowels 32

All dimensions are in mm

Additional information
FGV INTEGRA HINGE PLATES

FGV INTEGRA- H2 STANDARD PLATE, FGV INTEGRA- H4 STANDARD PLATE, FGV INTEGRA – H2 CAM ADJUSTMENT PLATE WITH KNOCK-IN DOWELS, FGV INTEGRA – H2 CAM ADJUSTMENT PLATE WITH EURO SCREWS, FGV INTEGRA – H4 CAM ADJUSTMENT PLATE WITH KNOCK-IN DOWELS
