Technical specifications:
- Depth of the metal cup 11.3mm
- Cup diameter 35mm

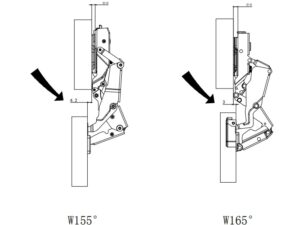

- Opening 155°, CRANK 0
- Possibility of door drilling (K) from 3 to 7 mm
- Thickness of the door (T) from 16 to 26 mm
- SlowMotion solution with linear damper
Features:
- The FGV INTEGRA Hinge is the latest solution for dampening doors. A SlowMotion linear damper hidden in the hinge arm offers effective and constant performances under all conditions.
- A rapid installation and 3D adjustments allow to find easily the door’s correct position.
- A hinge with a heart, a damper integrated into the arm, driving a controlled and silent movement. An advanced technology able to support strong and long-lasting applications.
- High stability and constant performances also under adverse closing conditions. An accurate depth adjustment to new spiral screw.
| CODE | DESCRIPTION | DRILLING | CUP DIA / DEPTH |
|---|---|---|---|
| 7.522045.155 | 155155° INTEGRA Soft Close Hinge 45mm distance between holes with 8mm dowel | 45 | 35 / 11.3 |
All dimensions are in mm
