CEMUX Series 167mm Soft Close Drawer with FROSTED GLASS sides

$53.00 – $58.00 (ex GST)

FEATURES

  1. Perfect sliding qualities with precision full extension runners incorporating silent & gradual closing
  2. Colour – White
  3. Quick installation and easy dismantling
Clear
SKU: N/A Category:
This item: CEMUX Series 167mm Soft Close Drawer with FROSTED GLASS sides
Clear
$53.00 – $58.00 (ex GST)
$53.00 – $58.00 (ex GST)
1 × CEMUX A-BOX 167mm x 500mm High Double Wall Drawer System
$45.00 (ex GST)
  • FEATURES
    1. Perfect sliding qualities with precision full extension runners incorporating silent & gradual closing
    2. Colour – White
    3. Quick installation and easy dismantling
    4. +/- 2mm up & down adjustment
    5. +/- 1.5mm left & right adjustment
    6. Integrated 3D front panel adjustment
    7. 40Kg dynamic loading capacity and 100,000 cycles tested.





CODEDESCRIPTIONPKG
Height 167mm with FROSTED GLASS
11.A3201.(*)84mm High Drawer system. (* = Size 400mm-500mm)1 PAIR
11.AF3203151WBack Bracket – WHITE L/R 167mm1 PAIR
11.AB1518400F8mm Frosted Glass L/R 167mm – 400mm1 PAIR
11.AB1518450F8mm Frosted Glass L/R 167mm – 450mm1 PAIR
11.AB1518500F8mm Frosted Glass L/R 167mm – 500mm1 PAIR
11.AB1518WGlass Holder / Fastener L/R 167mm1 PAIR

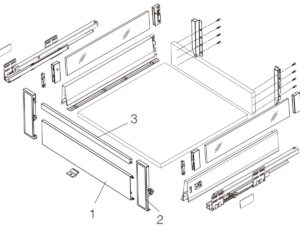

One Package contains

1.       Left / Right drawer runners
2.       Left / Right 84mmm high drawer sides
3.       Left / Right rear 167mm brackets
4.       Left / Right 8mm Frosted GLASS 167mm (Size 400mm-500mm)
5.       Left / Right 167mm High GLASS Holder / Fastener
6.       Installation instructions
