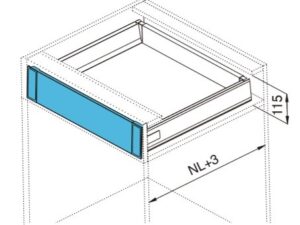

CEMUX Inner Drawer System 84mm

$5.50 – $6.50 (ex GST)

  1. Order below items separately for 84mm High Inner Drawer – WHITE
  2. CEMXU 84mm High drawer 11.A3201 (Size 270-550mm)
  3. Front Section 1200mm – WHITE
  4. Front Inner Drawer Bracket 84mm – WHITE
Clear
SKU: N/A Category:
This item: CEMUX Inner Drawer System 84mm
Clear
$5.50 – $6.50 (ex GST)
$5.50 – $6.50 (ex GST)
1 × CEMUX Cross Square Rail 1200mm - WHITE
$9.95 (ex GST)
  • FEATURES
    1. Perfect sliding qualities with precision full extension runners incorporating silent & gradual closing
    2. Colour – White
    3. Quick installation and easy dismantling
    4. +/- 2mm up & down adjustment
    5. +/- 1.5mm left & right adjustment
    6. Integrated 3D front panel adjustment
    7. 40Kg dynamic loading capacity and 100,000 cycles tested.
CODEDESCRIPTIONPKG
Order below items for 84mm Inner Drawer
11.A3201.(*)Choose Soft Close Drawer System 270mm – 550mm White1 Set
11.AL321200WFront Section 1200mm for Inner Drawer WHITE1 Pc
11.AH320101WFront Bracket for Inner Drawer to suit 84mm High drawer WHITE1 PAIR
