- FEATURES
- Perfect sliding qualities with precision full extension runners incorporating silent & gradual closing
- Colour – White
- 167mm High – 13mm panel width
- +/- 1.5mm up & down adjustment
- +/- 1.5mm left & right adjustment
- Integrated 3D front panel adjustment
- 40Kg dynamic loading capacity and 100,000 cycles tested.
Sizes available 270mm – 550mm
| CODE | DESCRIPTION | PKG |
|---|---|---|
| Height 'C' - 167mm | ||
| 12.H1303C.270 | CEMUX H-BOX Soft Close Drawer System 167H x 270mm – White | 1 Set |
| 12.H1303C.300 | CEMUX H-BOX Soft Close Drawer System 167H x 300mm – White | 1 Set |
| 12.H1303C.350 | CEMUX H-BOX Soft Close Drawer System 167H x 350mm – White | 1 Set |
| 12.H1303C.400 | CEMUX H-BOX Soft Close Drawer System 167H x 400mm – White | 1 Set |
| 12.H1303C.450 | CEMUX H-BOX Soft Close Drawer System 167H x 450mm – White | 1 Set |
| 12.H1303C.500 | CEMUX H-BOX Soft Close Drawer System 167H x 500mm – White | 1 Set |
| 12.H1303C.550 | CEMUX H-BOX Soft Close Drawer System 167H x 550mm – White | 1 Set |

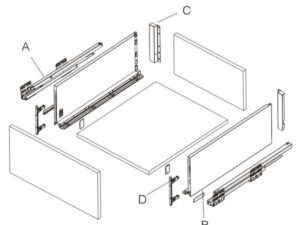

One Package contains
1. Left / Right drawer runners
2. Left / Right 167mm high drawer sides
3. Left / Right rear brackets
4. Left / Right front fixing brackets with dowels
5. Installation instructions
