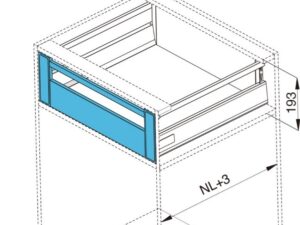

CEMUX A-BOX Inner Drawer System 167mm X 300mm High

$4.50 – $28.00 (ex GST)

  • Order below items separately for 167mm x 300mm High Inner Drawer – WHITE

CEMUX A-BOX 84mm X 300mm High Double Wall Drawer System

$28.00 (ex GST)

CEMUX A-BOX 167mm Rear Bracket

$6.00 (ex GST)

CEMUX A-BOX 300mm Top Square Rail WHITE

$4.50 (ex GST)

CEMUX A-BOX Front Inner Drawer Bracket - 167mm High

$7.50 (ex GST)

CEMUX A-BOX Front Section 1200mm - WHITE

$25.00 (ex GST)

CEMUX Cross Square Rail 1200mm - WHITE

$9.95 (ex GST)
SKU: 11.A3205.300 Category:
  • FEATURES
    1. Perfect sliding qualities with precision full extension runners incorporating silent & gradual closing
    2. Colour – White
    3. Quick installation and easy dismantling
    4. +/- 2mm up & down adjustment
    5. +/- 1.5mm left & right adjustment
    6. Integrated 3D front panel adjustment
    7. 40Kg dynamic loading capacity and 100,000 cycles tested.
CODEDESCRIPTIONPKG
Order below items for 167mm High Inner Drawer
11.A3201.300CEMUX A-BOX 300mm Soft Close Drawer WHITE1 Set
11.AL321200WFront Section 1200mm for Inner Drawer WHITE1 Pc
11.HF321200WCross Square Rail 1200mm WHITE1 Pc
11.AF320301WFront Bracket for Inner Drawer to suit 167mm drawer1 PAIR
11.AR3203151WBack Bracket to suit 167mm drawer – WHITE1 PAIR
11.AF320300WTop Square Rail -300mm WHITE1 PAIR
