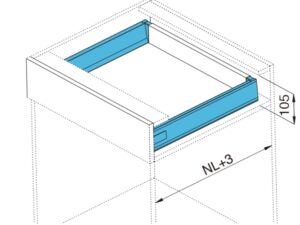

84MM-DIMENSIONS

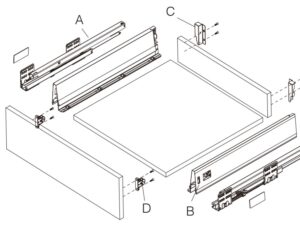

DRAWING-84MM

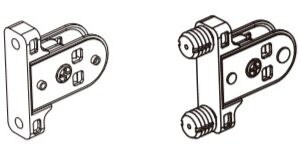

Front-Fixing-Brackets
Cemux A-Box 84mm High Double Wall Drawer System
drawer-side-1200×866
84MM-DIMENSIONS
DRAWING-84MM
Front-Fixing-Brackets

CEMUX A-BOX 84mm X 400mm High Double Wall Drawer System

$30.00 (ex GST)

FEATURES

  1. Perfect sliding qualities with precision full extension runners incorporating silent & gradual closing
  2. Colour – White
  3. Quick installation and easy dismantling
SKU: 11A3201.400 Category:
This item: CEMUX A-BOX 84mm X 400mm High Double Wall Drawer System
$30.00 (ex GST)
$30.00 (ex GST)
1 × CEMUX A-BOX 84mm X 500mm High Double Wall Drawer System
Original price was: $32.00.Current price is: $23.32. (ex GST)
1 × CEMUX A-BOX 84mm X 270mm High Double Wall Drawer System
$27.00 (ex GST)
  • FEATURES
    1. Perfect sliding qualities with precision full extension runners incorporating silent & gradual closing
    2. Colour – White
    3. Quick installation and easy dismantling
    4. +/- 2mm up & down adjustment
    5. +/- 1.5mm left & right adjustment
    6. Integrated 3D front panel adjustment
    7. 40Kg dynamic loading capacity and 100,000 cycles tested.



CODEDESCRIPTIONPKG
Height 84mm
11.A3201.400Soft Close Drawer System 400mm – White1 Set

One Package contains

1.       Left / Right drawer runners
2.       Left / Right 84mmmm high drawer sides
3.       Left / Right rear brackets
4.       Left / Right front fixing brackets with dowels
5.       Installation instructions

Download Instructions

Cemux-A-84mm-High
